IMPACT-X218B

IMPACT series has become well-known for its power to price ratio. Big power at great value. Customers around the world love their IMPACT series loudspeakers and are proud to use ‘Wharfedale Pro’.

To enhance that brand quality and customer passion, we have made a small cosmetic upgrade to IMPACT. It now boasts the iconic Wharfedale Pro boomerang logo !

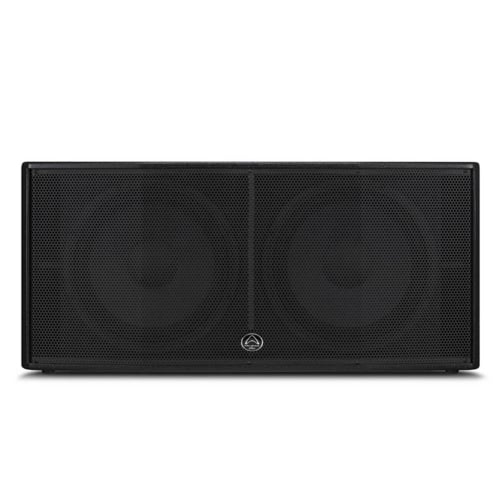

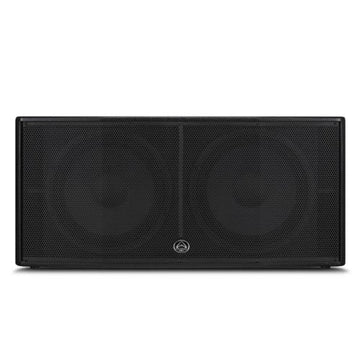

The Impact-X218B passive subwoofer encapsulates everything Wharfedale Pro stands for – High quality pro audio, at an affordable price. On this occasion we have raised the bar for affordable PA delivering a PA speaker series with a sound and aesthetic comparable to that of a much higher price bracket.

Full range IMPACT

The Impact Series has a desirable high power capacity and clarity. Impact-X218B is rated at 1000W RMS (4000W peak) and the power spans down to a 30Hz low-end.

Both the LF drivers are custom engineered and are acoustically matched to the extremely durable MDF cabinet.

Built to take an IMPACT

The Impact-X218B is ready for whatever life throws at it.

The strong MDF cabinet is covered in a textured black paint to give a durable yet stylish finish, which brings a professional look to any sound reinforcement environment.

The finish is extremely hard wearing and is leagues above any other carpet covered cabinet in the same price point.

Specifications to make an IMPACT

Model Name	IMPACT-X218B
System Type	Passive
Configuration	2x18" Subwoofer
Frequency Response (+/-3dB)	35Hz-1.2Hz
Frequency Range (-10dB)	30Hz-1.5kHZ
Sensitivity (2.83v/1m)	101dB
Calculated Maximum SPL @1m	137dB
System Rated Impedance	4Ω
Low Frequency Transducer
Size	2 x 470mm / 18"
Voice-Coil Size	65mm / 2.5"
Rated Impedance	2x8Ω
LF Power (re:AES2-2012)	2x500W
High Frequency Transducer
HF Driver Type
Voice-Coil Size
Exit Size
Diaphragm Material
Rated Impedance
HF Power (re:AES2-2012)
Nominal Coverage (H x V)
Nominal Impedance
Power
System Continuous Power	1000W
System Programme Power	2000W
System Peak Power	4000W
Crossover frequency
Input Connector	2 x NL2 (speakON compatible) combi jack
Hardware	N/A
	2 carry handles
Enclosure
Enclosure Material and finish	18mm MDF
Colour Options	black paint
Grille Material & Finish	steel
Dimensions - Unpacked
Height	554mm / 21.81"
Width Front	1222mm / 48.11"
Width Rear	1222mm / 48.11"
Depth	606.5mm / 23.88"
Dimensions - Packed
Height	628mm / 24.72"
Width Front	1295mm / 50.98"
Width Rear	1295mm / 50.98"
Depth	685mm / 26.97"
Weight
Net Weight	72kg / 158.4lbs
Gross Weight	80.6kg / 177.32lbs
