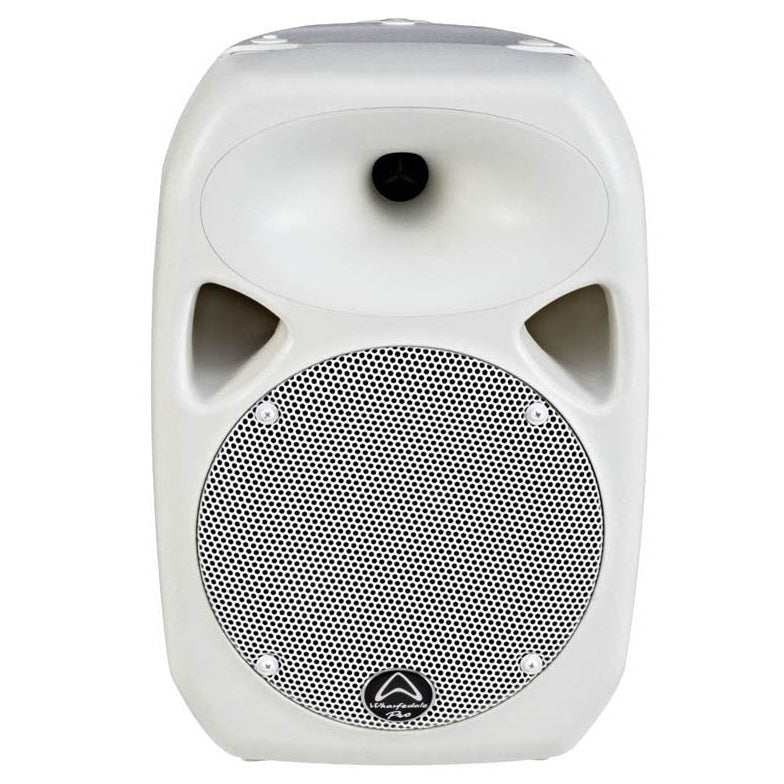

Wharfedale Titan 8 W

Titan 8

The Titan 8 passive pa speaker combines the Titan technology, materials and design topology, including a titanium compression driver and heavy-duty cast-frame woofer, to ensure absolute accuracy, high output and the smooth, wide dispersion of the critical mid and high frequency ranges. It is 150 Watts RMS, with 119dB Max SPL and whilst being ultra-compact and light weight it lends itself to a whole host of audio applications from gym installations, DJ booth monitors and public address.

Key Features

150W RMS / 300W Program / 600W Peak
124dB Max SPL
70Hz – 20kHz frequency response
Custom 8″ Heavy duty moisture-proof LF driver
Proprietary 90 x 60 Elliptical Wave Guide Horn design
High-end Titanium HF Compression Driver
Sophisticated Linkwitz-Riley 24dB/octave crossover design
Tough, yet lightweight Polypropylene molded cabinet with rubber padded handles
Multiple M6, M8 & M10 rigging points and integral tripod stand adapter
Trapezoid shape for arrays as well as stage monitor applications
Titan Tourbags available
Both 1/4″ and NL4 connectors provided

SPECIFICATIONS

Configuration : 2-Way
Frequency Response (+/- 3dB) : 65Hz – 20KHz
Power (RMS / Program / Peak) : 150W / 300W / 600W
Impedance : 8Ω
Max SPL : 124dB
Low Frequency Transducer : 8″
High Frequency Transducer : 1.2″ Titanium Compression Driver
Nominal Coverage : 90° x 60°
Waveguide Type : Elliptical
Input : 2 x Speakon, 2 x 6.3mm Jack
Net Weight : 5.5kg / 12.1lbs
Dimensions (H x W x D) : 396mm x 266mm x 221mm
