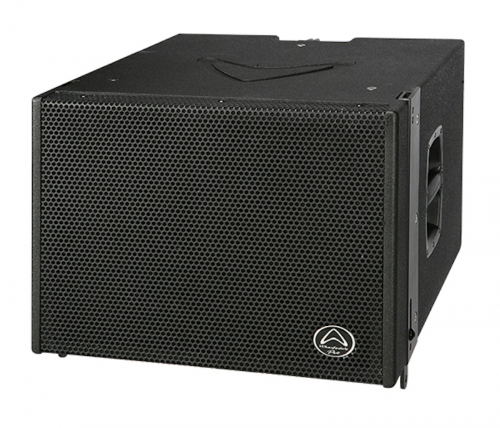

Wharfedale WLA25 Sub

Wharfedale WLA25 Sub

Dual 10" Passive Subwoofer
Regular price R14,799.00
Sale price R14,799.00 Regular price
Unit price
Tax included.

From R 1,233.25 per month

  • 4× fortnightly payments of  R3,699.75   with Payflex
  • 12× monthly payments of   R1,233.25  with Mobicred
Ask a question

Ask a Question

* Required fields

 Size guide Share

Delivery: Fast Shipping – Door to Door Standard Delivery

Collection: Free In Store Collection

Product ID Icon Product ID: 8533727772838

Wharfedale WLA25 Sub

Wharfedale WLA25 Sub

Regular price R14,799.00
Sale price R14,799.00 Regular price
Unit price
Product description
Reviews
Shipping & Return

WLA-25SUB

Compact power with sonic detail.



For the low-end punch in a WLA-25 rig, we have also created the 141dB SPL WLA-25SUB subwoofer.

This subwoofer physically and acoustically matches the WLA-25 system.

Using a reversed-phase horn loaded design, the 2 * 10” LF drivers with massive 2.5” coils deliver the consistent low end punch to complete this versatile and portable array.

Key Features


  • 2 * 10" Wharfedale Pro LF drivers
  • 2.5" voice coils
  • 700w RMS / 1400w Program / 2800w Peak
  • 4Ω Impedance
  • 141dB Max SPL
  • Available in black or white road ready Rhino rock finish



Dual 10" Wharfedale Pro LF transducers
The two 10" LF drivers inside the WLA-25SUB deliver the low end punch needed from the array.



Using a reversed-phase horn loaded design the two drivers work in harmony to produce up to 141dB Max SPL.



Each driver is custom made by Wharfedale Pro and boasts 2.5" voice coils. These larger coils help with cooling and ultimately allow for the higher power handling that the WLA-25SUB can deliver.

Flexible Fly Frame
Arrays can be assembled using only WLA-25 line array modules or with WLA-25SUB Subwoofers at the top of the array.



The WLA-25SUB Fly Frame allows for a WLA-25SUB subwoofer to be used at the top of the array. The WLA-25SUB Fly Frame supports up to 12 x WLA-25 modules and 1 x WLA-25SUB with a safety factor of 12.



For WLA-25 arrays where a subwoofer is used on the floor, WLA-25 components can be flown using the WLA-25 Fly Frame.

Ready for Ground Stacking
WLA-25 rigging doubles up as an optimized ground stacking system, using the WLA-25SUB subwoofer as a base.



Arrays of WLA-25 line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.

Control
For maximum control of such a system, the Versadrive series of Digital Matrix Controllers deliver dynamic effects processing which ensures the right frequencies are sent to the different components within the line array.



A huge selection of effects are at your fingertips.

On the input side a Versadrive includes Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay.

For the output section, make your setup using any combination of Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay and Linking.
