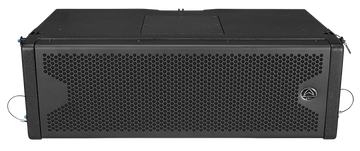

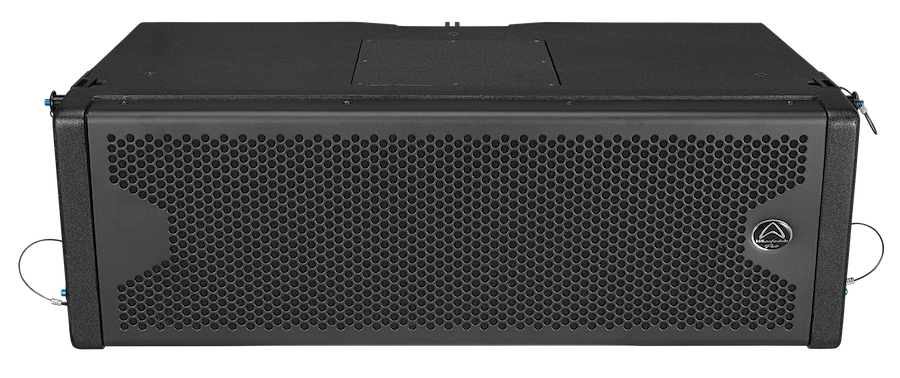

Wharfedale WLA 28X
Wharfedale WLA28X Passive Line Array
From R 1,232.91 per month
-
4× fortnightly payments of R3,698.75 with
-
12× monthly payments of R1,232.91 with
Delivery: Fast Shipping – Door to Door Standard Delivery
Collection: Free In Store Collection
Product ID: 8534029402278
Wharfedale WLA 28X
The WLA-28X
- Re-designed dual 8” Passive line array
- Re-defined HF compression driver
- Improved HF protection circuit
- Bi-amp and Passive mode switching
- System AES LF: 400 W HF: 90 W
- System Programme LF: 800 W HF: 180 W
- System Peak Power LF: 1600 W HF: 360 W
- 15 mm / 18 mm Birch Plywood construction
About the Clarity
The new neo HF compression driver delivers additional clarity and performance with enhanced definition. It is custom-made by Wharfedale Pro and is coupled to a 100° x 10° waveguide.
Dual 8″
At the heart of the WLA-28X are 2 x 8″ custom Wharfedale Pro LF drivers. These feature 2.0″ voice coils to ensure high efficiency and high power handling. These custom-designed transducers are what give a WLA-28X system its incredible sound and power handling capacity.
Bi-Amp & Passive
In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker.
In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.
Specifications
| Model Name | WLA-28X |
|---|---|
| System Type | 2 x 8” Two-way |
| Frequency Response (+/-3 dB) | 65 Hz-20 KHz |
| Sensitivity (2.83 v / 1 m) | 101 dB |
| Calculated Maximum SPL @1 m | 133 dB |
| Nominal Coverage (H x V) | 100°x10° |
| Power: Continuous / Programme / Peak |
Passive: 400 W / 800 W / 1600 W Bi-amp LF: 400 W / 800 W / 1600 W Bi-amp HF: 90 W / 180 W / 360 W |
| Rated Impedance ( Ω ) | Passive: 16 Ω Bi-amp LF: 16 Ω ; Bi-amp HF: 16 Ω |
| HF Diaphragm Material | Titanium |
| HF Magnet Material | NdFeB |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| HF Coil Size (inches/mm) | 3.0” (75 mm) |
| LF Coil Size (inches/mm) | 2.0” (51.6 mm) |
| Crossover Frequency | 1.7 KHz |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 18 mm / 15 mm Plywood |
| Enclosure Colour | Black paint |
| Grille Material & Finish | 1.5 mm Steel |
| Connectors | Neutrik NL4MP |
| Hardware | Integral side plate adjustable rigging 0°-10° |
| Cabinet Dimensions HxWxD(mm) | 250 x 760 x 463.2 mm |
| Packed Dimensions HxWxD(mm) | 320 x 830 x 534 mm |
| Net Weight (Kg) | 29.5 Kg |
| Gross Weight (Kg) | 32.0 Kg |
