Yamaha CM12V

A Formidable Floor Monitor

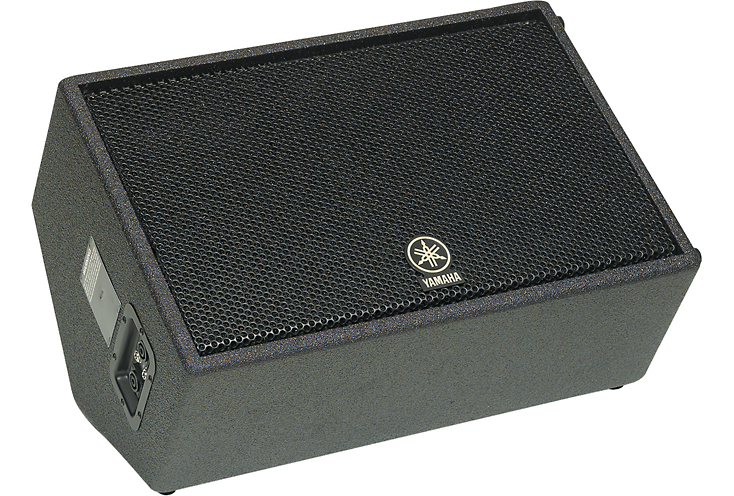

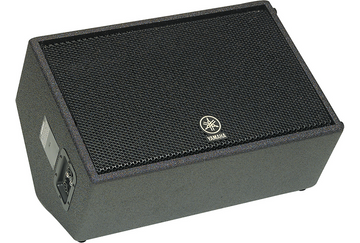

The Yamaha CM12V 12" passive floor monitor is a part of Yamaha's popular Club Series Speakers range. The refinements of generation V continue their success story: larger enclosures for improved low-frequency performance, improved drivers for higher power handling, redesigned crossovers, stronger grilles, and dual Speakon and 1/4" connectors. The Yamaha CM12V is aesthetically designed to pair with Yamaha's VC Series speaker systems. Offering up a 2-way design - 12" woofer, Horn plus 2" voice coil driver - you'll enjoy reliable stage monitoring with the Yamaha CM12V 12" floor monitor.

• Cabinet construction
• World-class drivers
• Crossovers

These cabinets are constructed of high quality particleboard, chosen for its high strength and elasticity, consistent void free makeup and light weight. Another great benefit of this material is its environmental friendliness. Made from southern yellow pine, this material is both abundant and quickly renewable. Accurate CNC routing machines are used to cut every part, assuring consistency with tolerances of one ten thousandth of an inch. Skilled technicians assemble each cabinet by hand, rejecting any defects. Whether covered in durable carpet or the elastomeric spray coating (featured on this CM12V), heavy steel handles and sturdy pole sockets make moving and positioning easy.

The drivers, or speakers in these cabinets, are custom made by Eminence Speaker Corporation to Yamaha's exacting tolerances. Woofers share design features like high strength curvilinear cones and Dupont Kapton voice coil formers. Oxygen-free copper voice coils and oversize strontium ferrite magnets are also used to provide high power handling and long life. The 12" driver uses cast aluminum frames to support the massive magnet structure, eliminate flex, and help dissipate heat. The compression driver that generates the high frequency sound uses a pure titanium diaphragm. This 2" dome is one of the largest in its class, allowing for very high output and low distortion, without the aid of cooling fluids. It's mated to a 90 degrees x 40 degrees custom designed CD (constant directivity) horn with excellent dispersion and response.

Crossover networks that divide the signal going to the woofer and compression driver are constructed with oversized coils, high voltage capacitors, and power resistors designed to provide the best possible sound quality and minimize loss. Overload protection is also included to protect the components.

• 12" 2-way floor monitor
• Texture-coated, matches Yamaha VC Series systems
• 55Hz-16kHz Frequency range (-10dB)
• Power Rating: PGM - 350W, Max - 700W
• Sensitivity (1W,1m): 99dB SPL
• LF: 12" cone
• HF: Horn + 2" voice coil driver
• Connectors: 1/4" phone jack x 2, SPEAKON Neutrik NL4MP x 2
