Yamaha DZR12-D

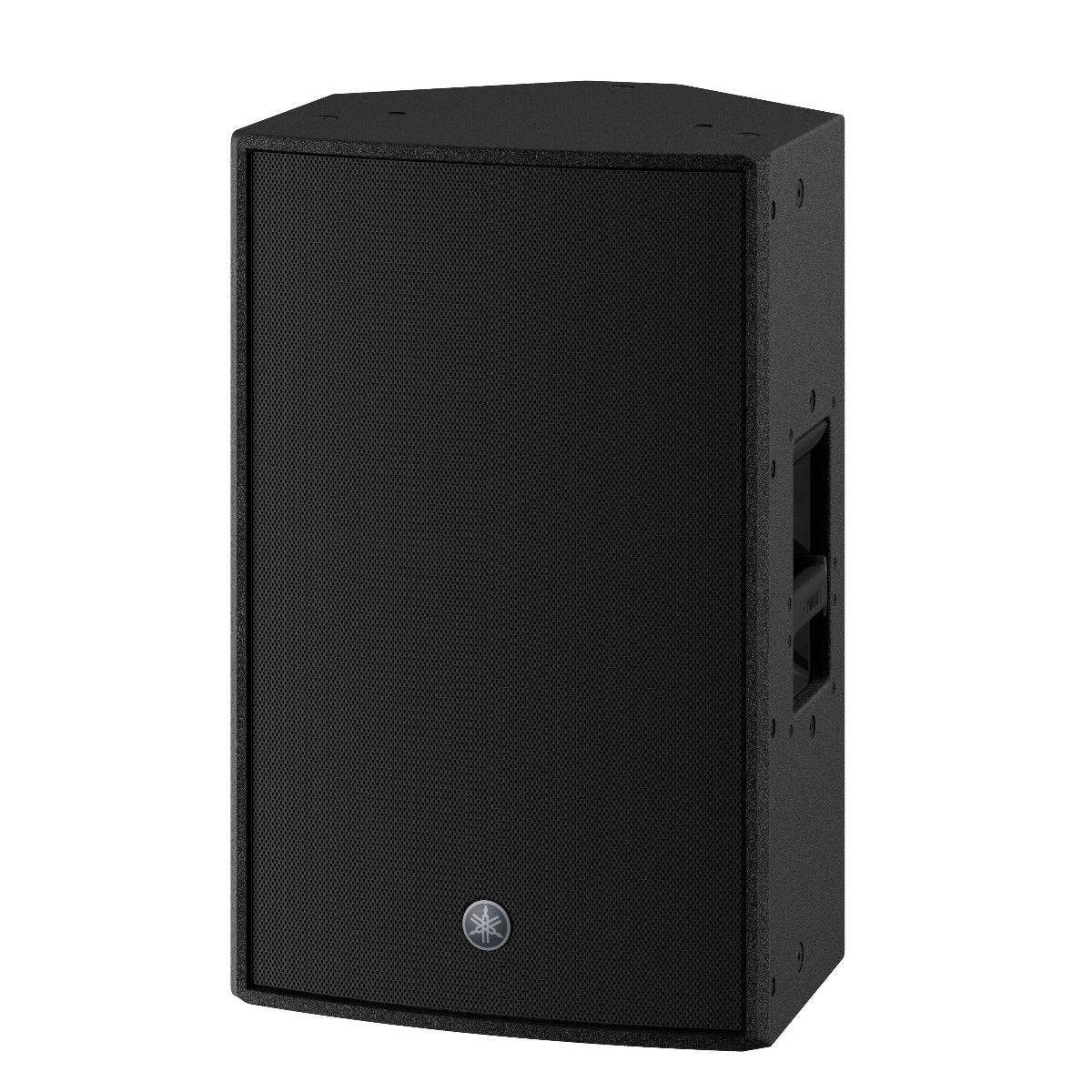

Yamaha DZR12-D Dante-Enabled 12" Powered Loudspeaker

The Yamaha DZR12-D is a premium 2-way, bi-amped powered loudspeaker delivering exceptional clarity, power, and intelligent DSP control. With Dante networking, advanced FIR-X tuning, and a rugged yet lightweight design, it is engineered for professional sound reinforcement in touring, fixed installations, and demanding live environments.

Key Features

• 2000W Class-D amplifier delivering up to 139dB SPL

• 12" LF driver + 2" HF compression driver

• 39Hz–20kHz frequency range for full, detailed sound

• Dante I/O (2in/2out) with SRC for 48kHz compatibility

• 96kHz DSP processing with FIR filters for ultra-low latency and high-resolution audio

• Advanced FIR-X Tuning minimizes phase distortion and ensures smooth frequency response

• D-CONTOUR intelligent multi-band compression with FOH/MAIN and MONITOR modes

• Onboard LCD screen for PEQ, delay, routing, presets and detailed DSP control

• Store up to 8 user presets or transfer settings via USB

• Floor monitor mode with mirror-mode configuration for optimized stage use

• Rotatable horn (90° × 60°) for vertical or horizontal placement

• Premium 15mm plywood cabinet with durable Polyurea coating

• Multiple rigging options including U-brackets (UB-DZR)

Transducer Design

• HF Driver: 2" voice coil, titanium diaphragm, Neodymium magnet

• LF Driver: Large 3" voice coil with lightweight neodymium magnet for deep, controlled bass with minimal distortion

Protection & Reliability

• Intelligent DSP safeguards the speaker’s power supply, amplifiers, and transducers

• Ensures consistent performance at all output levels and extends component life

Ideal For

• Professional FOH applications

• Touring and rental companies

• Houses of worship

• Theatres and auditoriums

• High-end stage monitoring

• Dante-enabled audio networks

Optional Accessories

• SPCVR-DZR12 Protective Cover

• UB-DZR U-Brackets for vertical/horizontal installation
