Wharfedale DP2200

Wharfedale DP2200

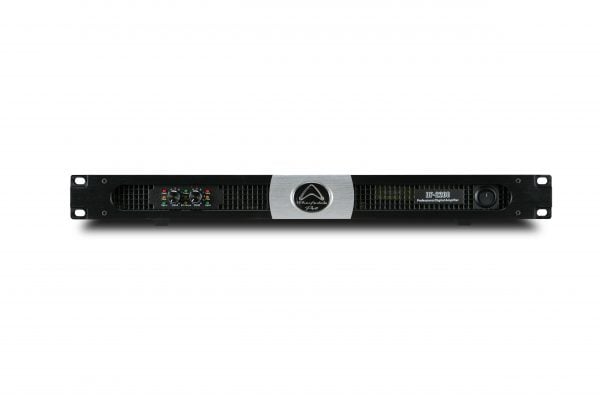

2x428W Lightweight Power Amplifier

Regular price R28,895.00
Sale price R28,895.00 Regular price R34,995.00
Unit price
Tax included.

From R 2,407.91 per month

  • 4× fortnightly payments of  R7,223.75   with Payflex
  • 12× monthly payments of   R2,407.91  with Mobicred
Ask a question

Ask a Question

* Required fields

 Size guide Share

Delivery: Fast Shipping – Door to Door Standard Delivery

Collection: Free In Store Collection

Product ID Icon Product ID: 8534132064422

Wharfedale DP2200

Wharfedale DP2200

Regular price R28,895.00
Sale price R28,895.00 Regular price R34,995.00
Unit price
Product description
Reviews
Shipping & Return
DP-2200

Suitable for professional live sound reinforcement or fixed installations, the stereo DP-2200 delivers extreme power from a light weight box. Its advanced switch mode power supply and super-efficient Class D topology delivers high power with low distortion.

PROTECTION
Internally, a full suite of protection circuitry includes thermal, over-current, DC, short circuit protect and power on/off mute. This level of protection ensures long term system reliability and peace of mind should the worst ever happen.Front panel LEDs also keep the sound engineer well informed with fault, peak and signal LEDs.The variable speed fans keep the amplifier rack quiet when not in use – and cool while its running at high volume.
MODES AND SWITCHES
The DP Series feature stereo, bridge and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single DP to power your whole sound system equally.Mono mode saves external cabling by splitting a single input to feed both channels of the amplifier.In addition, gains can easily be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue.The DP-2200 features XLR inputs with a maximum input level of +22dBu allowing for integration with any typical professional audio system.
DESIGN
The 1U design allows for powerful systems to be configured in extremely confined spaces. In the tour rack or in the amp room, DP delivers reliable power from a small box.Lightweight, powerful and portable. Its that simple!
Key Features
  • Super light weight – Only 9.28kg
  • Stereo configuration
  • Power Output 8Ω : 2 x 2000w
  • 6800w@8Ω BTL
  • Ultra-quiet variable speed fans
  • Advanced protection circuitry
  • Class D topology

SPECIFICATIONS
Model Name DP-2200
Power Output
Stereo power output 8Ω x 2 2000w
4Ω x 2 3400w
Bridged mono output 16Ω 4000w
Bridged mono output 8Ω 6800w
Input sensitivity & Impedance
Sensitivity selectable 41/38/35/32dB
Balanced XLR input 20kΩ
Max input level 22dBu (9.7Vrms)
Voltage gain 41dB
Slew rate >50V / μs
Crosstalk <-90dB
S/N >112dB
Distortion (1W) <0.02%
Frequency response
+/-1dB @ 8Ω 20Hz – 20kHz
+/-3dB @ 8Ω 20Hz – 30kHz
Damping factor >5000
Topology Class D
Connectors
Signal input Female & Male XLR jacks
Power output speakON compatible
Controls
Front panel AC Switch, CH and CH2 gain knobs
Rear panel Parallel, Stereo & Bridge mode switch, Limiter switch
Thermal, Over-current, Output DC, Output short protect
Indicators Power, Protect, Signal, Limiter
Cooling Variable speed fan
AC Power 90 ~ 260VAC, 50 ~ 60Hz
Dimensions 44 * 485 * 370mm
Weight (Net) 9.28kg
Weight (Gross) 11.3kg

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 7 days of delivery.
