IMPACT-X18B

IMPACT series has become well-known for its power to price ratio. Big power at great value. Customers around the world love their IMPACT series loudspeakers and are proud to use ‘Wharfedale Pro’.

To enhance that brand quality and customer passion, we have made a small cosmetic upgrade to IMPACT. It now boasts the iconic Wharfedale Pro boomerang logo !

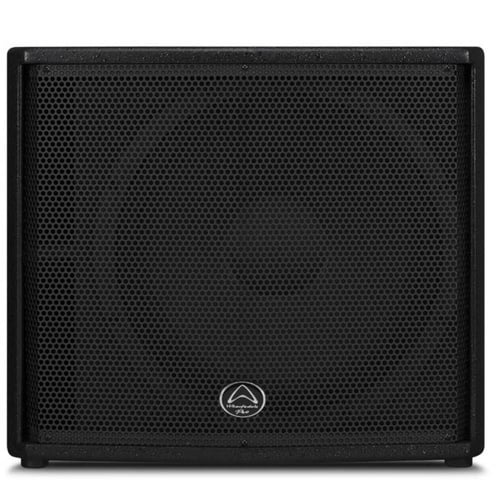

The Impact-X18B passive subwoofer encapsulates everything Wharfedale Pro stands for – High quality pro audio, at an affordable price. On this occasion we have raised the bar for affordable PA delivering a PA speaker series with a sound and aesthetic comparable to that of a much higher price bracket.

Full range IMPACT

The Impact Series has a desirable high power capacity and clarity. Impact-X18B is rated at 500W RMS (2000W peak) and the power spans down to a 30Hz low-end.

Built to take an IMPACT

The Impact-X18B is ready for whatever life throws at it.

The strong MDF cabinet is covered in a textured black paint to give a durable yet stylish finish, which brings a professional look to any sound reinforcement environment.

The finish is extremely hard wearing and is leagues above any other carpet covered cabinet in the same price point.

Specifications to make an IMPACT

Model Name	IMPACT-X18B
System Type	Passive
Configuration	18" Subwoofer
Frequency Response (+/-3dB)	40Hz-220Hz
Frequency Range (-10dB)	30Hz-250Hz
Sensitivity (2.83v/1m)	100dB
Calculated Maximum SPL @1m	133dB
System Rated Impedance	4Ω
Low Frequency Transducer
Size	470mm / 18"
Voice-Coil Size	65mm / 2.5"
Rated Impedance	4Ω
LF Power (re:AES2-2012)	500W
High Frequency Transducer
HF Driver Type
Voice-Coil Size
Exit Size
Diaphragm Material
Rated Impedance
HF Power (re:AES2-2012)
Nominal Coverage (H x V)
Nominal Impedance
Power
System Continuous Power	500W
System Programme Power	1000W
System Peak Power	2000W
Crossover frequency	250Hz
Input Connector	2 x NL2 (speakON compatible) combi jack
Hardware	35mm pole socket
	2 carry handles
Enclosure
Enclosure Material and finish	MDF
Colour Options	black paint
Grille Material & Finish	steel
Dimensions - Unpacked
Height	526mm / 20.71"
Width Front	611mm / 24.06"
Width Rear	611mm / 23.06"
Depth	606.5mm / 23.88"
Dimensions - Packed
Height	635mm / 25"
Width Front	710mm / 27.95"
Width Rear	710mm / 27.95"
Depth	660mm / 25.98"
Weight
Net Weight	34.52kg / 75.9lbs
Gross Weight	41.2kg / 90.6lbs
